FM2030 Heavy Duty Soldering Iron Kit

SKU: HFM2030-02

Hakko
Availability:

Available for order*


The Hakko FM-2030 Heavy Duty Soldering iron Kit is the ideal companion for the Hakko FM-203 soldering station or the FM-206 rework station.

£153.55 Excl. VAT

Available for order*

A minimum sub total of £250.00 is required, You need an additional £250.00 to proceed through to the checkout.

For customers in the Republic of Ireland, please contact us for a quote including shipping and customs charges.

Request quote

HEAVY DUTY SOLDERING IRON with HOLDER

The Hakko FM-2030 Soldering Iron provides a higher mass tip with double the power of conventional T15 tips. This iron is ideal for soldering difficult-to-solder heavy ground planes and/or high heat sink applications.

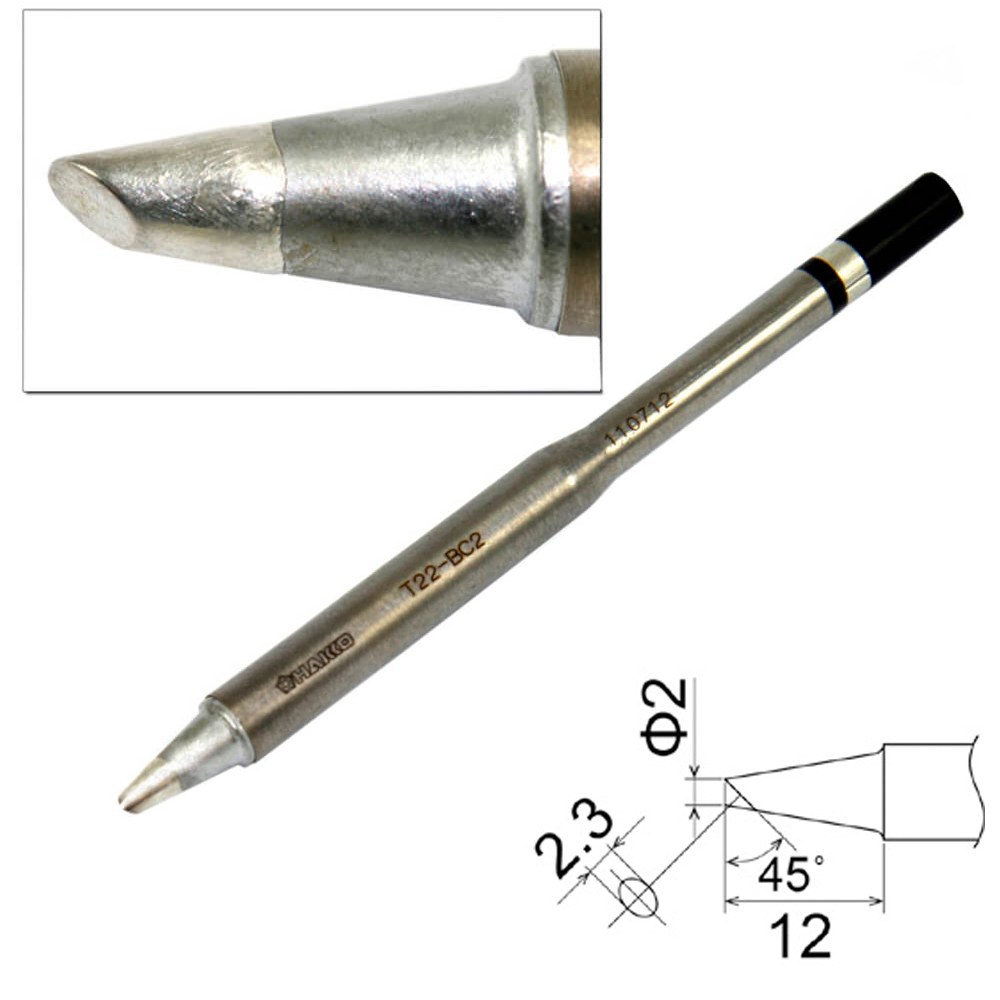

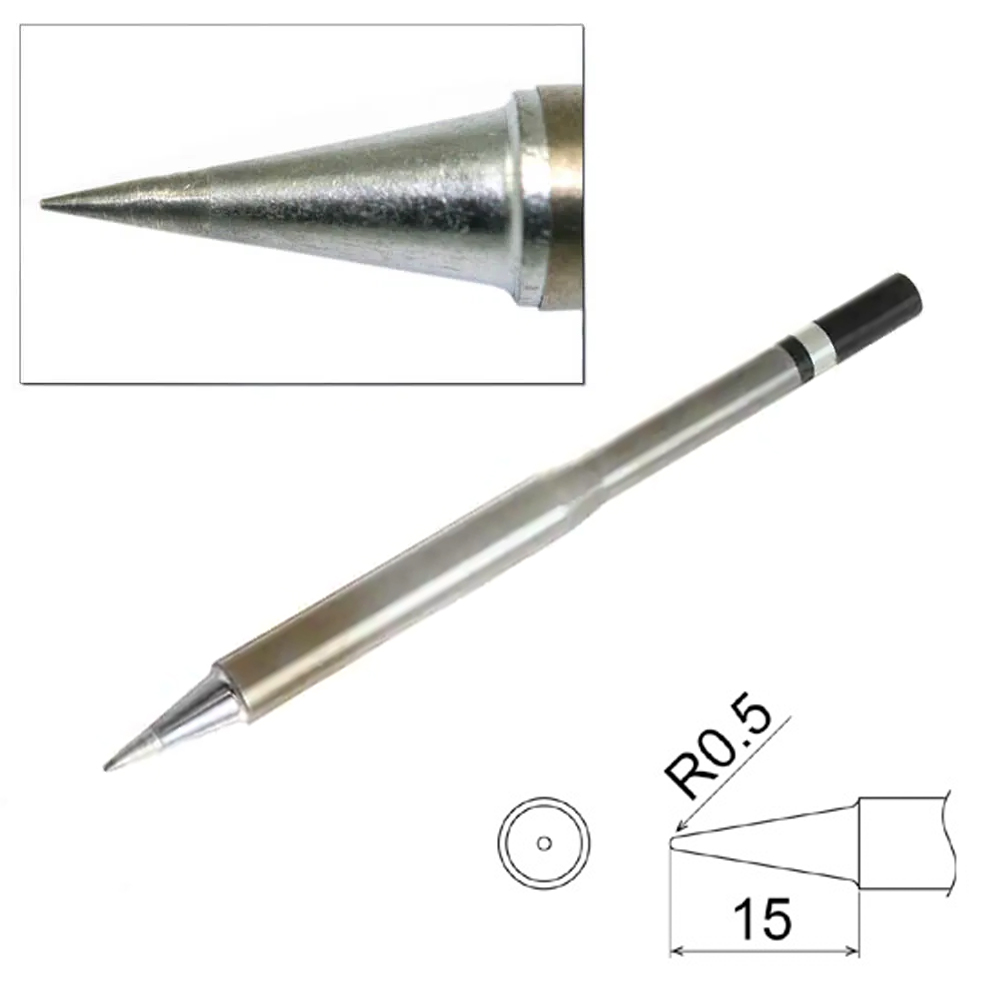

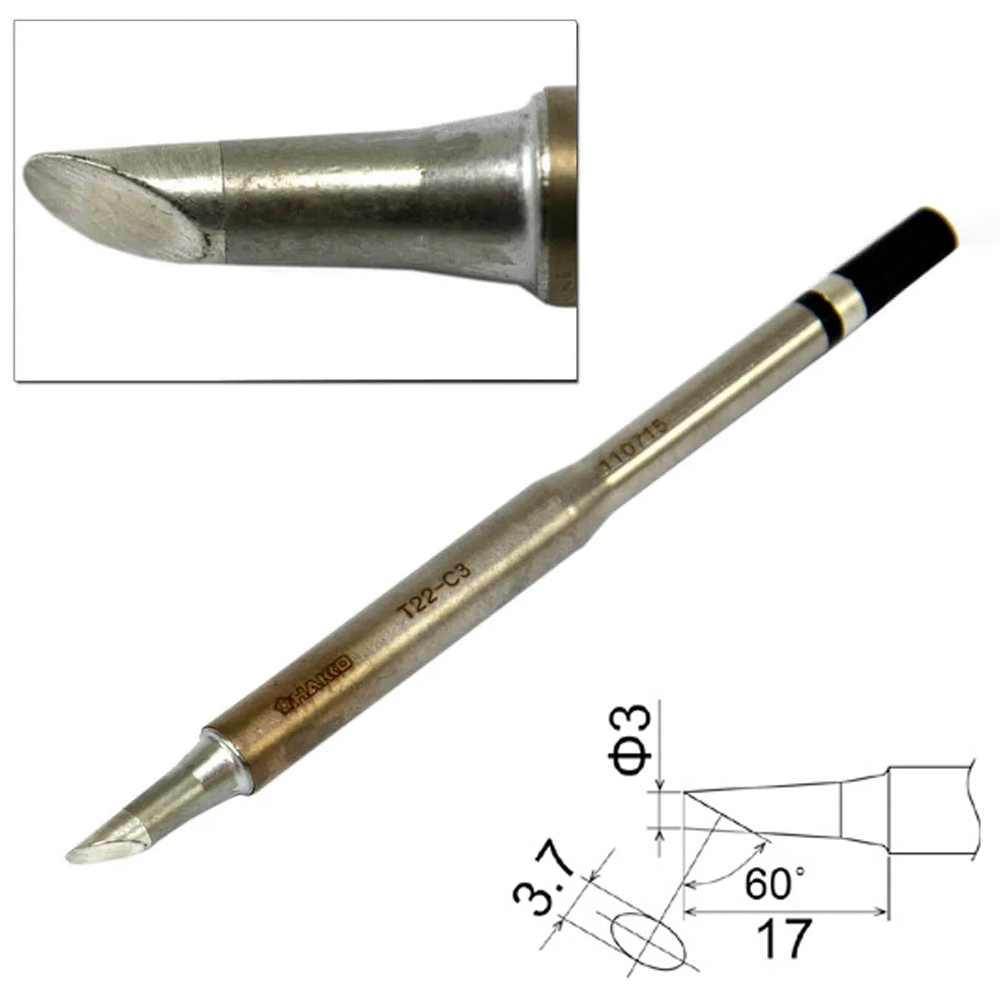

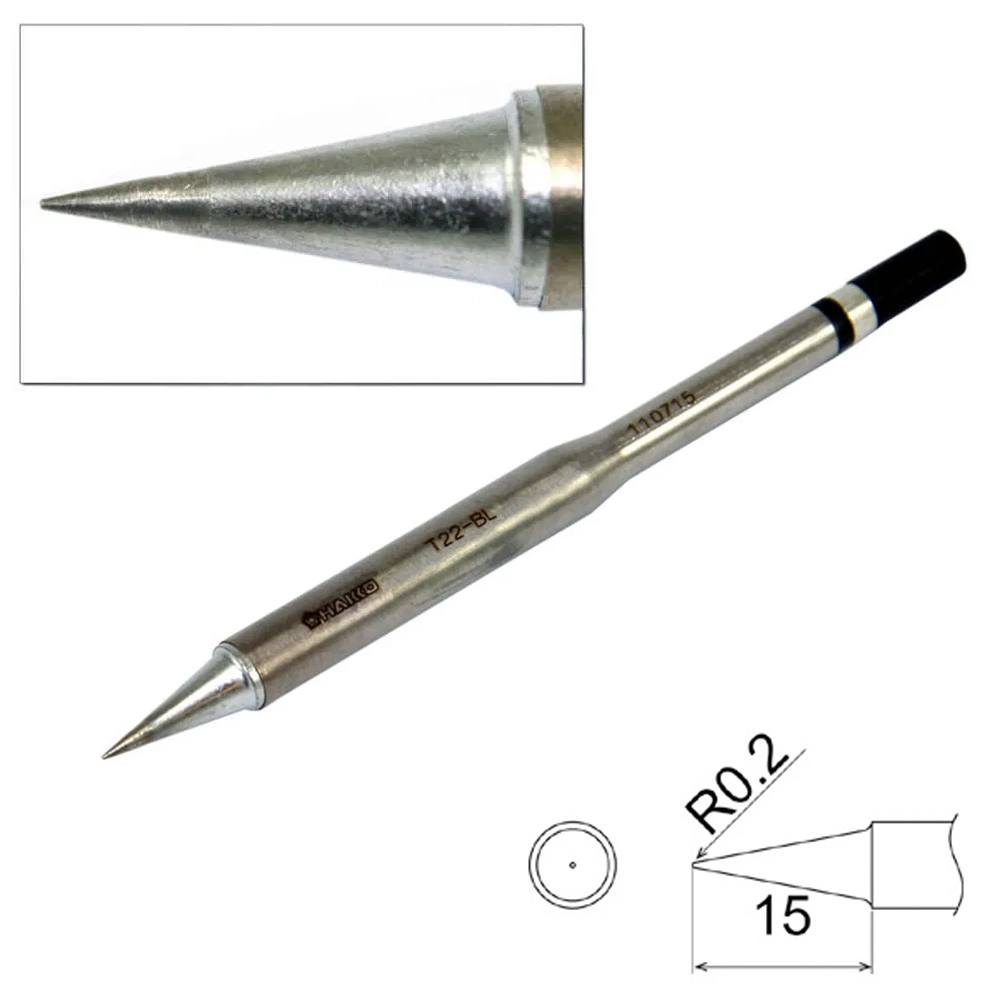

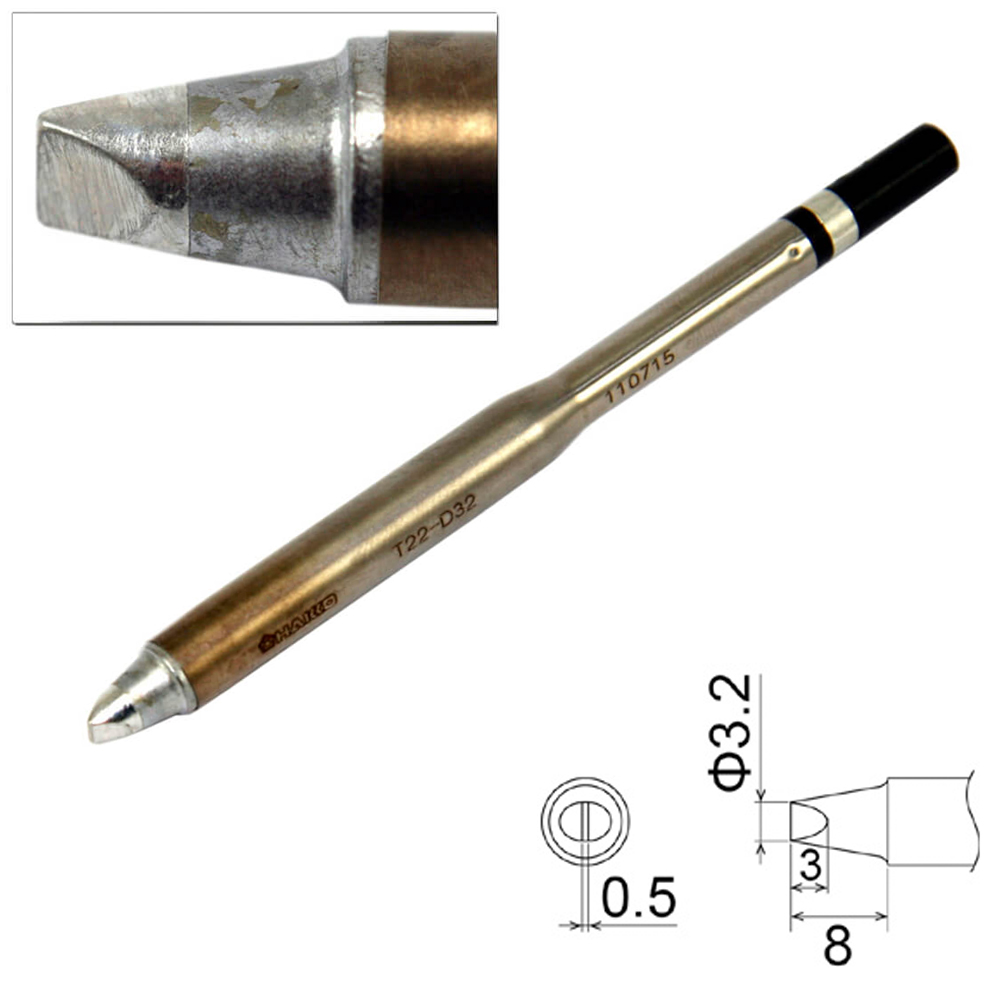

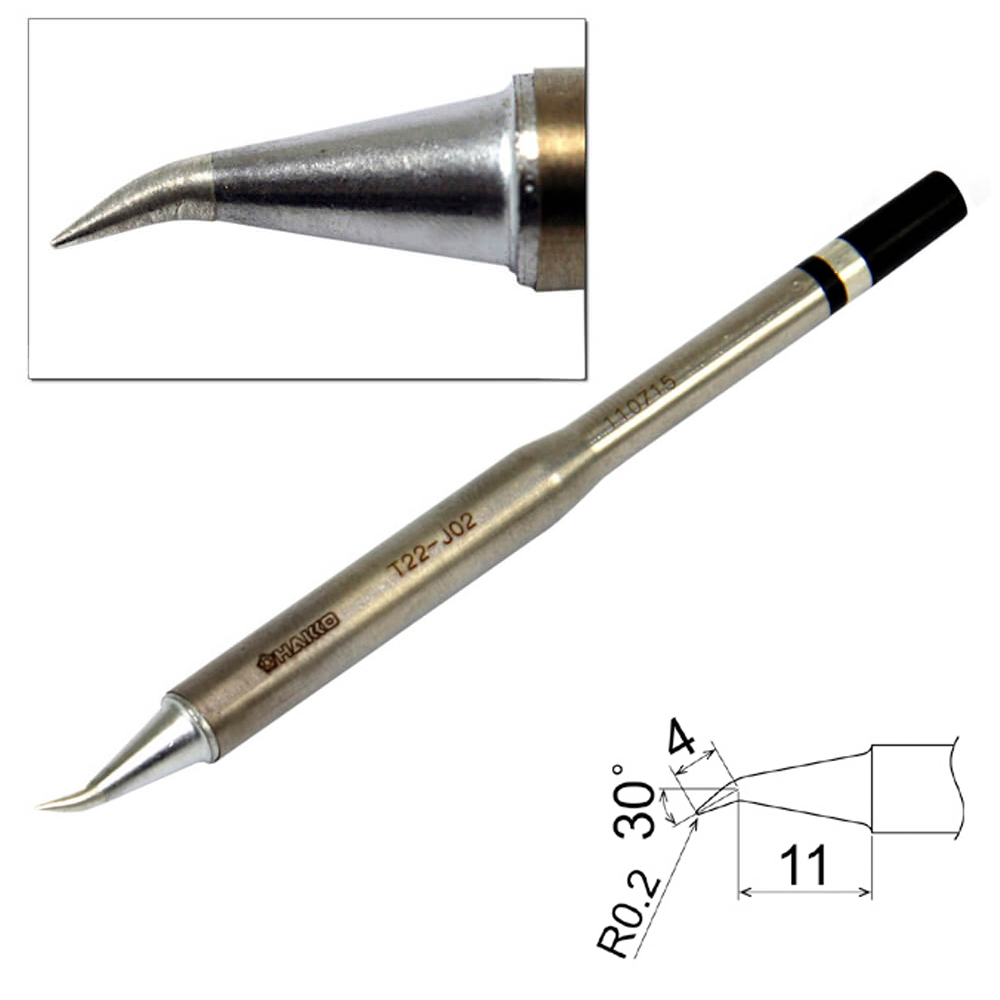

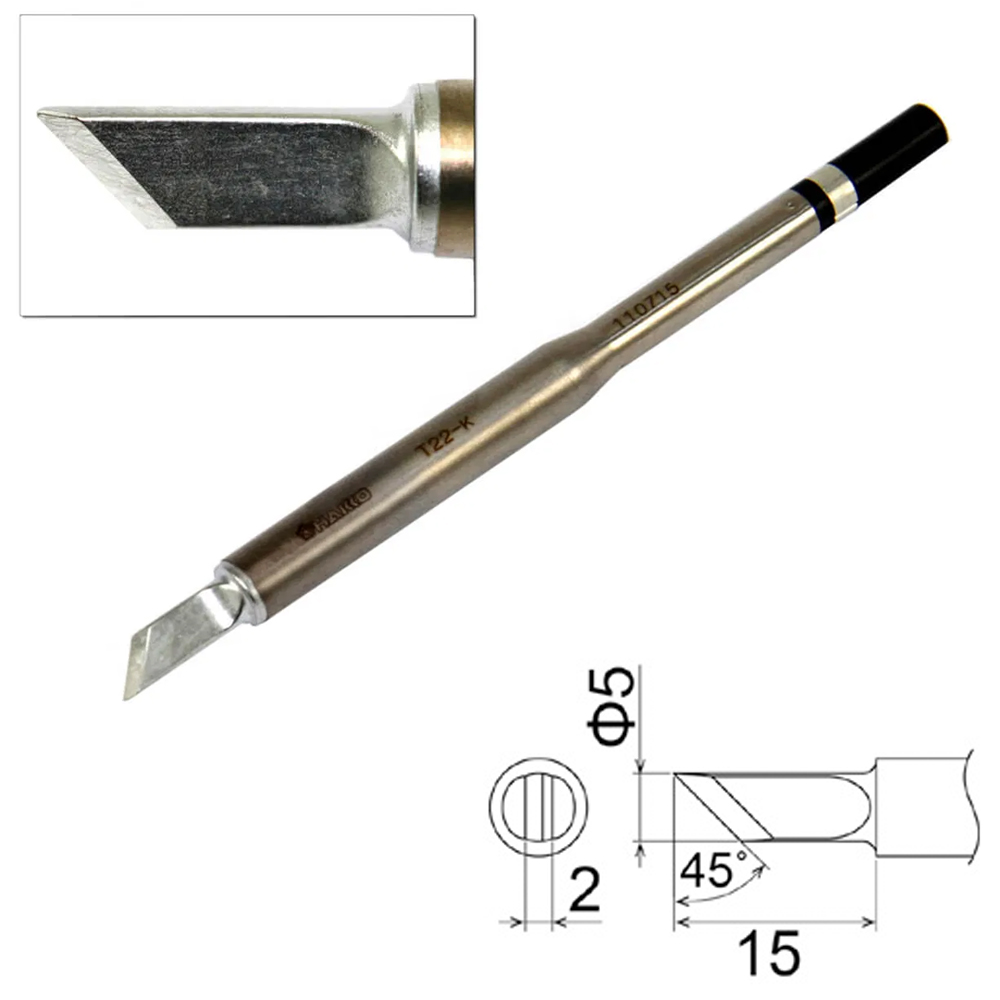

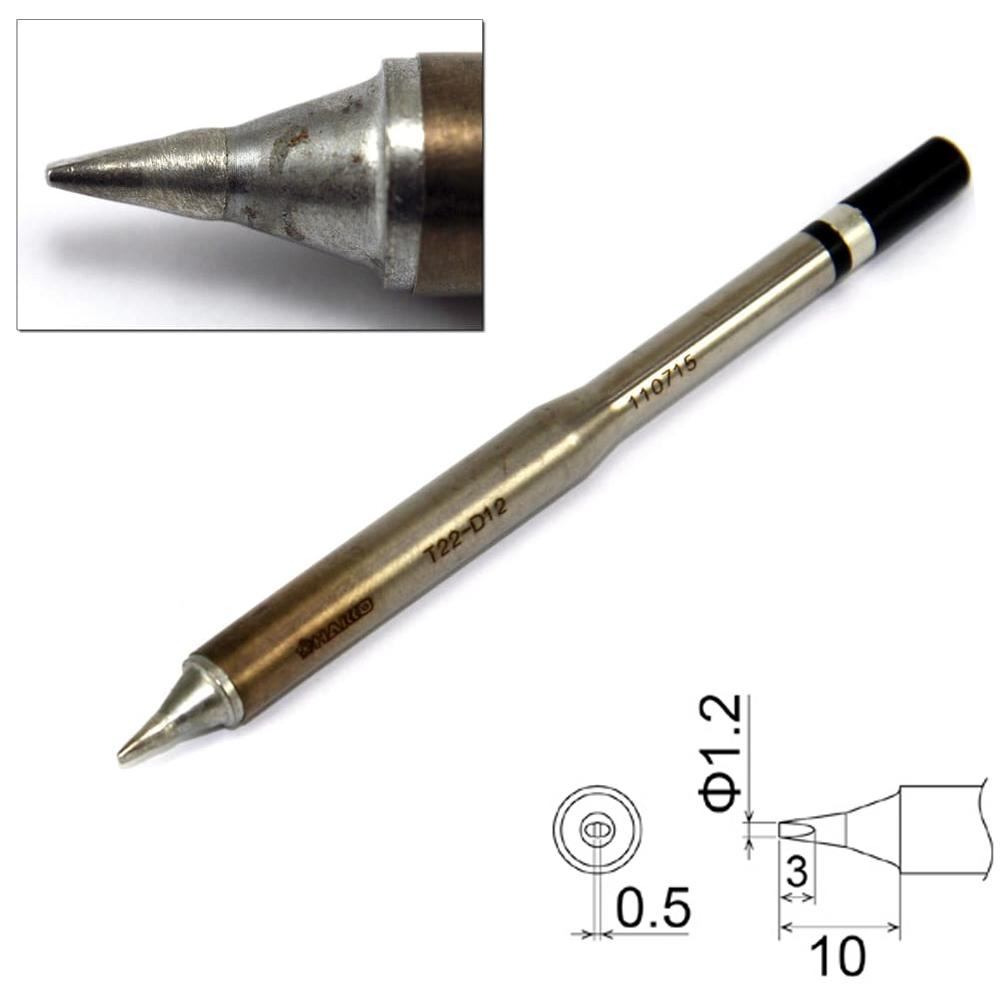

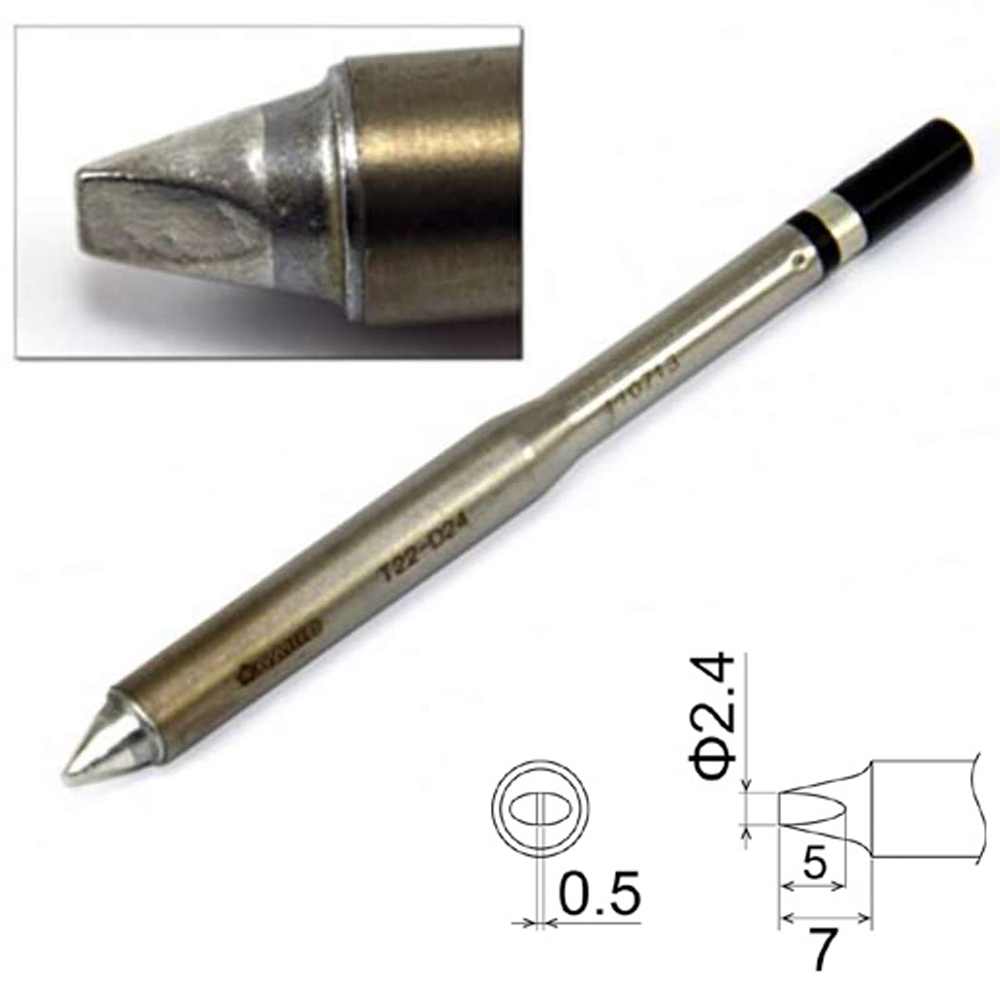

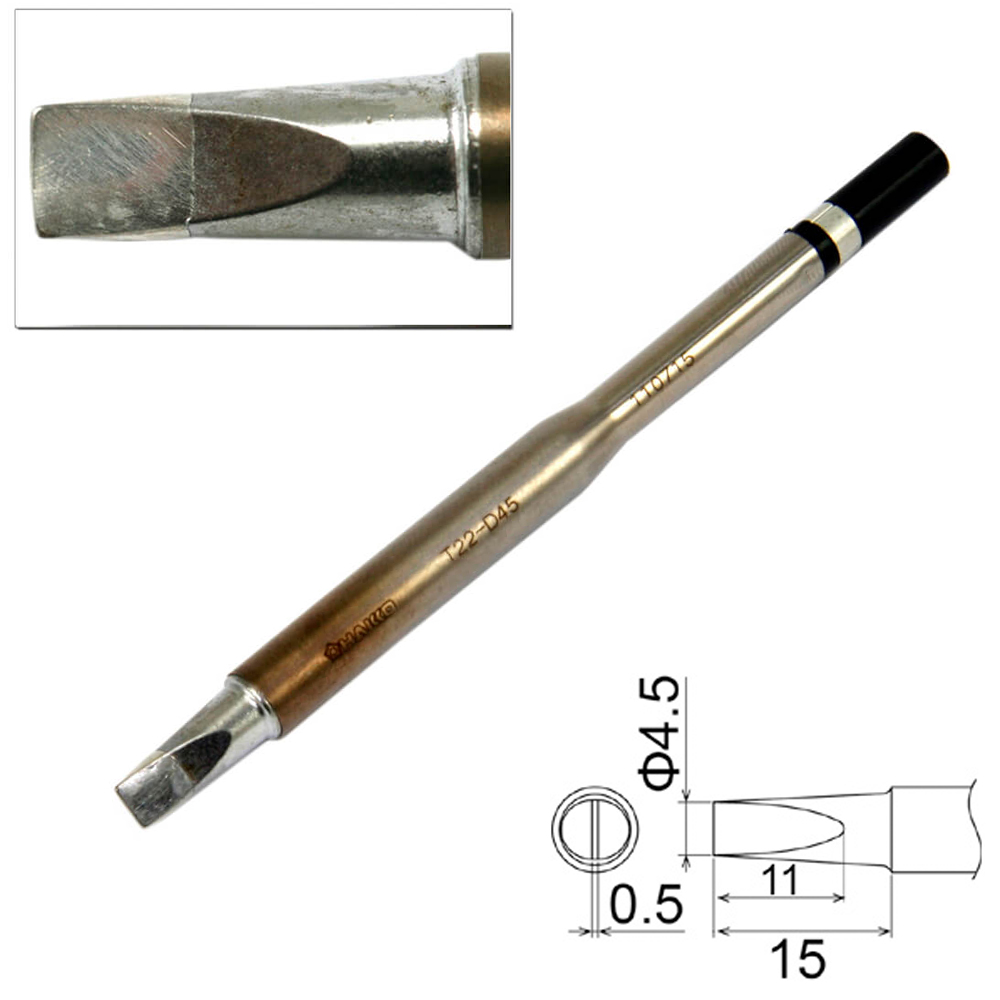

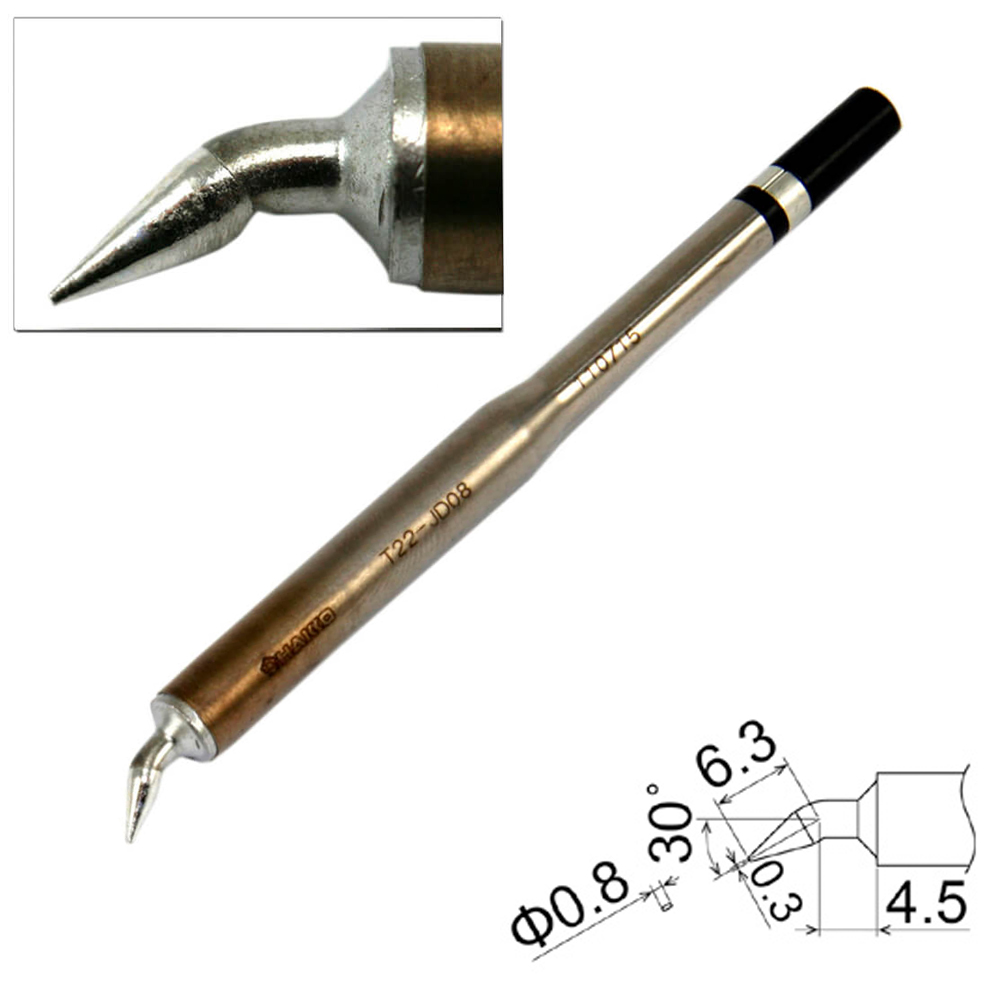

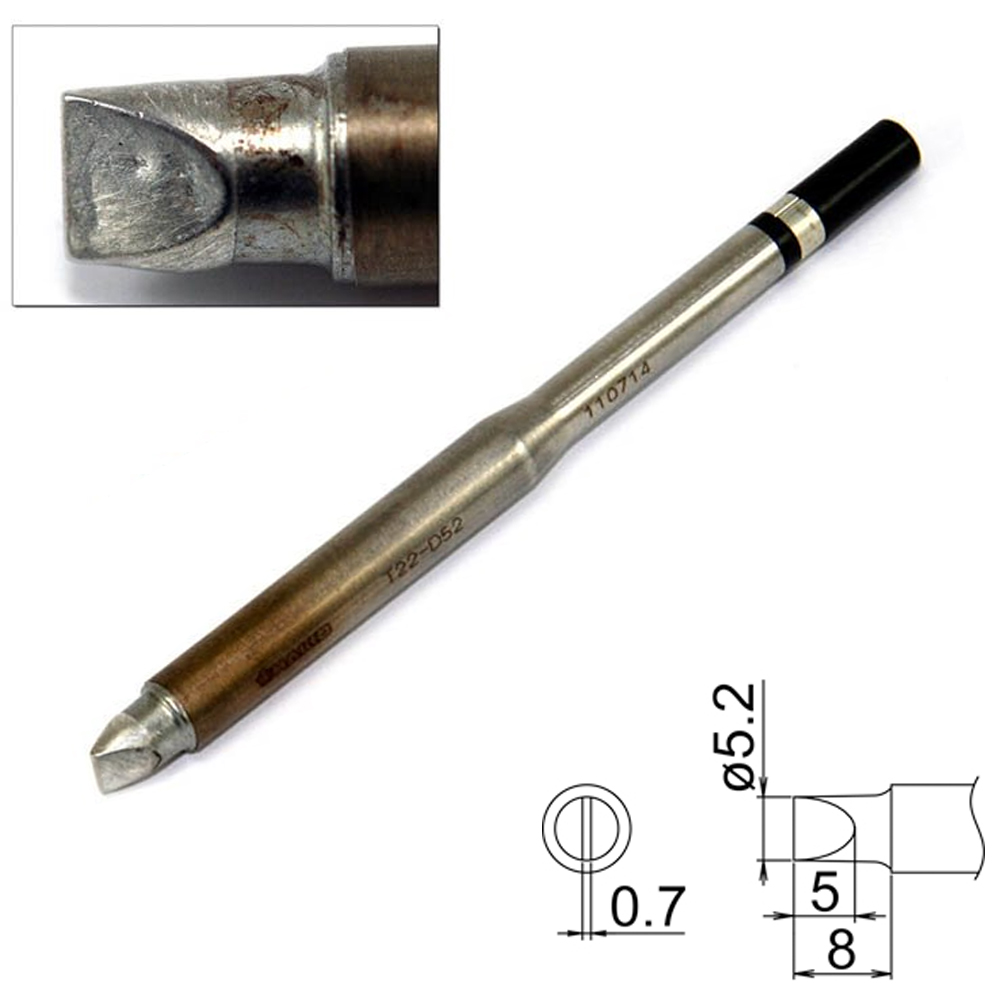

  • uses T22 tips (not included)
  • compatible with the Hakko FM-203 soldering station and FM206 rework system
  • includes holder (with sleep functionality), tip cleaner and other affiliated parts

IMPORTANT.PLEASE READ: The FM2030 can only be attached to the Hakko FM203 “D” port, and the Hakko FM-206 CH2 or CH3 ports. If you attach the iron to any other port, a grip error or connector error (C-E) will occur.

Note:The FM-203 stations with serial numbers before 02203211002129 will require the purchase of an upgrade. Due to the upgrade process requirements, upgrades cannot be performed in the field. Stations must be returned to American Hakko under a CASE for this upgrade, at which time the upgrade (PN: FM203-UPGR) can be purchased with the FM2030-02 kit and your selection of T22 tips.

Specifications

Handpiece
Model Name FM-2030
Part No.

FM2030-01 (handpiece only)

Power Consumption 140W / 24VAC
Tip to Ground Resistance <2 ohms
Leak Voltage <2mV
Total Length (w/o cord) 224mm (8.8 in.)
Weight (w/o cord) 41g (1.4oz)
Cord/Reach 1.3m (4.3 ft.)
Tips T22 Series (not included)

What's in the box?

Description Part No.
FM-2030 Handpiece FM2030-01
Handpiece holder with Sleep function FH200-01
Connecting cable B3253
Heat resistant pad B2300

Soldering Tip / Nozzle
